怎麼用 imgaug套件取得轉換後的訊息 - Cupoy

參照了Day16的作業使用了幾個funimport imgaug as iaimport imgau...

cvdl-1,cvdl-1-d44

怎麼用 imgaug套件取得轉換後的訊息

2020/02/10 上午 00:43
電腦視覺深度學習討論版
Kent
觀看數:9
回答數:1
收藏數:0
cvdl-1
cvdl-1-d44

參照了Day16的作業使用了幾個fun

import imgaug as ia
import imgaug.augmenters as iaa
from imgaug.augmentables.kps import Keypoint, KeypointsOnImage


def augment(img, points):
= cv2.cvtColor(img, cv2.COLOR_BGR2RGB) #Cv2讀進來是BGR,轉成RGB
= np.array(img, dtype=np.float32)

   kps
= [
   Keypoint(x
=points[0], y=points[1]),  # 'left_eye_center_x', 'left_eye_center_y'
   Keypoint(x
=points[2], y=points[3]),  # 'right_eye_center_x', 'right_eye_center_y',
   Keypoint(x
=points[4], y=points[5]),  # 'left_eye_inner_corner_x', 'left_eye_inner_corner_y',
   Keypoint(x
=points[6], y=points[7]),  # 'left_eye_outer_corner_x', 'left_eye_outer_corner_y',
   Keypoint(x
=points[8], y=points[9]),  # 'right_eye_inner_corner_x', 'right_eye_inner_corner_y',
   Keypoint(x
=points[10], y=points[11]), # 'right_eye_outer_corner_x', 'right_eye_outer_corner_y',
   Keypoint(x
=points[12], y=points[13]), # 'left_eyebrow_inner_end_x', 'left_eyebrow_inner_end_y',
   Keypoint(x
=points[14], y=points[15]), # 'left_eyebrow_outer_end_x', 'left_eyebrow_outer_end_y',
   Keypoint(x
=points[16], y=points[17]), # 'right_eyebrow_inner_end_x', 'right_eyebrow_inner_end_y',
   Keypoint(x
=points[18], y=points[19]), # 'right_eyebrow_outer_end_x', 'right_eyebrow_outer_end_y',
   Keypoint(x
=points[20], y=points[21]), # 'nose_tip_x', 'nose_tip_y',
   Keypoint(x
=points[22], y=points[23]), # 'mouth_left_corner_x', 'mouth_left_corner_y',
   Keypoint(x
=points[24], y=points[25]), # 'mouth_right_corner_x', 'mouth_right_corner_y'
   Keypoint(x
=points[26], y=points[27]), # 'mouth_center_top_lip_x', 'mouth_center_top_lip_y',
   Keypoint(x
=points[28], y=points[29])  # 'mouth_center_bottom_lip_x', 'mouth_center_bottom_lip_y'
   ]
   kpsoi
= KeypointsOnImage(kps, shape=img.shape)
   sometimes
= lambda aug: iaa.Sometimes(0.5, aug) # Sometimes(0.5, ...) 代表每次都有50%的機率運用不同的Augmentation


##包裝想運用之圖像強化方式
   seq
= iaa.Sequential([
       iaa
.Fliplr(0.5), # horizontally flip 50% of the images
       iaa
.Flipud(0.5), # vertically flip 50% of all images

#iaa.GaussianBlur(sigma=(0, 3.0)), # blur images with a sigma of 0 to 3.0
       iaa
.Affine(
               scale
={"x": (0.8, 1.2), "y": (0.8, 1.2)}, # scale images to 80-120% of their size, individually per axis
               translate_px
={"x": (-16, 16), "y": (-16, 16)}, # translate by -16 to +16 pixels (per axis)
               rotate
=(-45, 45), # rotate by -45 to +45 degrees
               shear
=(-16, 16), # shear by -16 to +16 degrees
               order
=ia.ALL, # use any of scikit-image's interpolation methods

#cval=(0, 1.0), # if mode is constant, use a cval between 0 and 1.0

#mode=ia.ALL # use any of scikit-image's warping modes (see 2nd image from the top for examples)
           )
       ],
       random_order
=True # do all of the above in random order
   )



#image_aug = seq.augment_images(img) ## Image Augmentation
   image_aug, kps_aug
= seq(image=img, keypoints=kpsoi) # Image Augmentation

#for i in range(len(kpsoi.keypoints)):

#    kps_before = kpsoi.keypoints[i]

#    kps_after = kps_aug.keypoints[i]

#print("Keypoint %d: (%.8f, %.8f) -> (%.8f, %.8f)" % (i, kps_before.x, kps_before.y, kps_after.x, kps_after.y))


return image_aug, kps_aug


這個fun可以幫助我取得轉換後的key points! 但是資訊的形式卻變成...

Keypoint(x=-10.57457924, y=-10.79163456)
Keypoint(x=-11.02216148, y=-10.82747650)
Keypoint(x=-10.65522385, y=-10.78267384)

...


這個lib中我該如何簡單取出(x,y) 的座標呢?

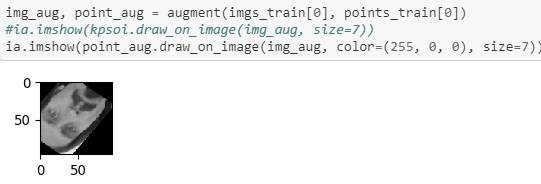

以及這個fun 中 ia.imshow(point_aug.draw_on_image 怎麼將圖形還原大小呢? 我怎麼畫都很小.....

回答列表

  • 2020/02/10 下午 10:54
    Jeffrey
    贊同數:0
    不贊同數:0
    留言數:0
